Noisy Terrain
Procedural Graphics Independent Study Completed Under Professor Adam Mally — Spring 2021
WebGL, TypeScript
Overview
In my final semester of senior year, I undertook an Independent Study centered around the topic of procedural graphics. For this course, I completed multiple assignments in WebGL and Typescript, along with creating shaders in ShaderToy.
This project involves creating a terrain shader so that it utilizes noise functions to deform the surface and affect the color of the subdivided plane to give the impression of an environment with geographic features. This terrain is to include different types of noise, and the terrain should be modifiable by the user.
Process
For this assignment, I decided to make three different types of terrain.
-

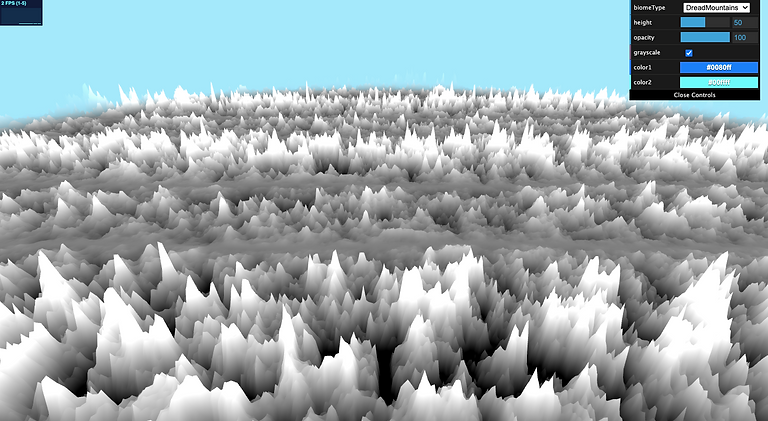

DreadMountains
-
CottonCandyHills
-
FlatWasteLand
I used a lot of resources to complete this assignment, such as IQ's websites for random function and noise, previous material used in graphics courses, and other websites. I cite these websites within comments in the code throughout the shaders.
Additionally, I have added a GUI to modify some elements. One can modify the type of terrain they are witnessing through a drop down menu. Additionally, they can edit the height of the terrain, the opacity, whether it is in grayscale or not, and two colors that we can interpolate the terrain colors between.
Techniques used to generate planet features: I used dat.GUI for the GUI elements, passing them through to the vertex and fragment shader through uniform variables.
In the vertex shader I generate the height based on the type of terrain is chosen as well as the x, z value, and where the user's position is in space. For the DreadMountains, I map the user input height in between a range and then I use a sine term combined with Fractal Brownian Motion noise. Within the actual FBM noise function, I use another noise function which is called value noise.
For the CottonCandyHills terrain, I use a sine term, a mapped height term based on user input, as well as Fractal Brownian Motion with another value noise function. In this one, I also use a Voronoi noise function.
For the FlatWasteLand, I use the sine term, a mapped height term based on user input, as well as Fractal Brownian Motion with another value noise function. In this one, I use a smoothstep function in order to create the flat hills at the top and create a new height value from that.
In the fragment shader is where I set the colors. I pass through the FBM term since each terrain uses FBM, which is mapped from 0 to 1. Using this height mapping, I am able to use a mapping function to allow a gradient between two user input functions. If the user chooses not to input colors, then the colors will be greyscale, with the lower portions being darker and the higher portions being lighter. I basically map the user's colors to black and white and then translate them into the output color.
Final Results
Here is the link to view the project online: https://saranyacodes.github.io/CIS599_HW01/
Here is a link to the Git repository for the project.
Interactive Noisy Terrain Scene
